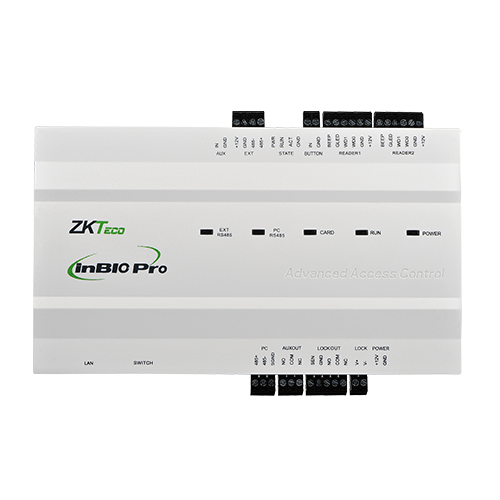

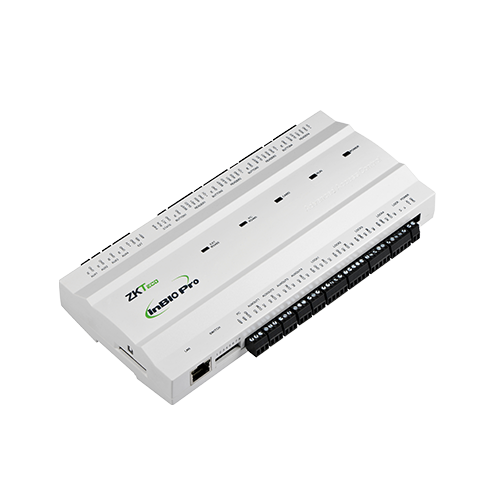

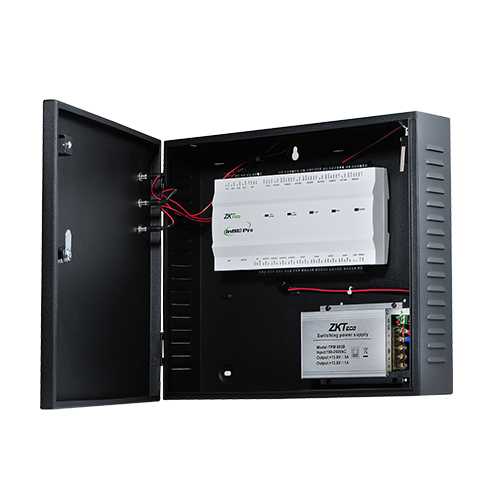

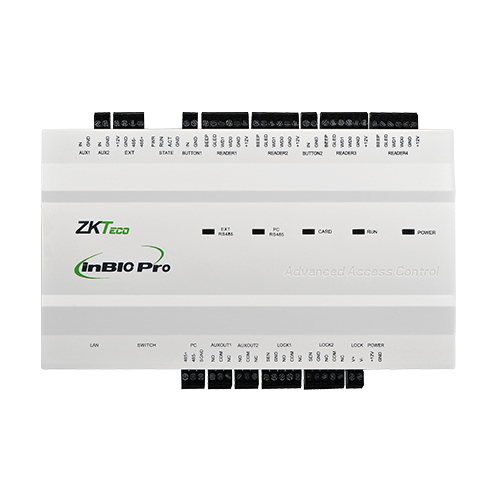

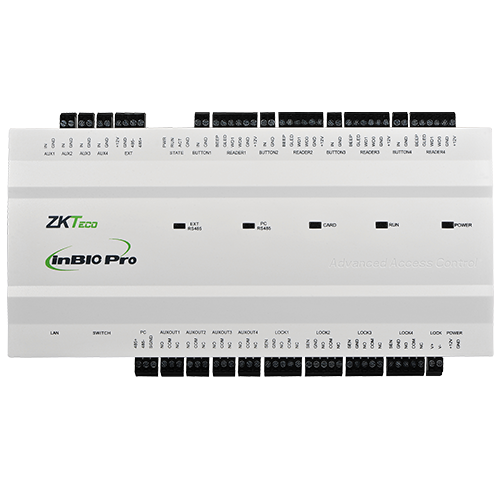

InBio460 Pro (Package)
- Card Holders Capacity:?60,000
- Fingerprint Capacity:?20,000
- Log Events Capacity:?100,000
- Communication:?TCP/IP
- Package Dimension:?350(L) ? 90(H) ? 300(W)mm
- Package Weight: InBio-460 Pro: 3.7kg
- CPU:?32 bit 1.2GHz CPU
- RAM:?128MB
- Flash Memory:?256MB
- Power Supply:?9.6V – 14.4V DC
- Operating Temperature:?0 – 45 ?C
- Operating Humidity:?20% to 80%
0
People watching this product now!
Description
InBio Pro Series is a project oriented high-end product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks. The InBio Pro Series are the perfect match for ZKBioSecurity web based software platform to provide a full featured biometric security solution. In combination with the FR1300 RS485 reader, the panels can authenticate users under multiple verification modes such as fingerprint, card and password for a higher security level.
- Number of Doors Controlled: InBio-460 Pro: 4 Door
- Number of Readers Supported: InBio-460 Pro: 12 (8 RS-485 Reader, 4 26-bit wiegand reader?
- Types of Readers Supported:?26-bit Wiegand and RS485 FR Series Reader
- Number of Inputs: InBio-460 Pro: 12 (4 Exit Button, 4 Door Status, 4 AUX)
- Number of Outputs: InBio-460 Pro: 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
Reviews (0)
Related products
EC10 and EX16
- Floor Button Control Relay: 10
- Fingerprint Capacity (optional): 3000
- RFID Card Capacity: 30,000
- Event Capacity: 100,000
- Power Supply: 12V DC 1A
- Communication to PC: TCP/IP, RS485*
- Communication to EX16: RS485
- Number of supported EX16: 3
- Dimension: 242mm ? 95mm ? 60mm (LDH)
- Net Weight: 0.8Kg
- Floor Button Control Relay: 16
