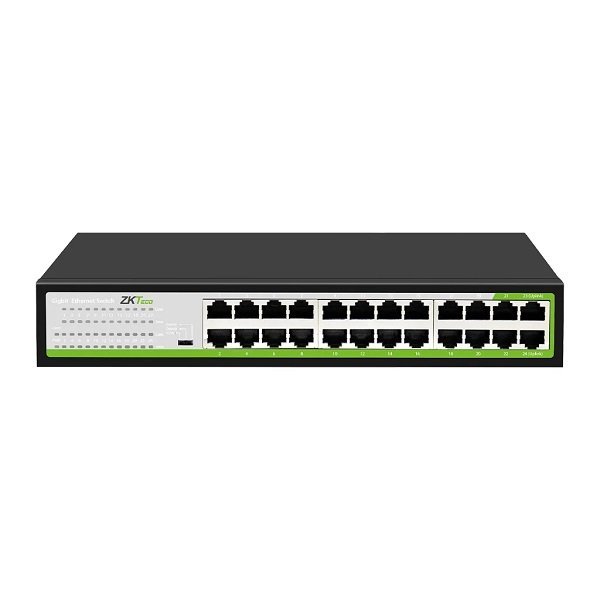

PE24-240 | 24 Port PoE Network Switch
? 24 10 / 100BaseT RJ45 ports
? 2 sets of 10 / 100 / 1000M gigabyte combo ports
? The total power budget is 400W, and the max. PoE power output is 30W
? Support IP-MAC-Port-VID binding ARP / IP / DoS defend, 802.1X authentication
? Support IEEE802.1Q VLAN, OoS, ACL, spanning-tree, and multicast
? Support port security, port monitoring, port isolation
? Support web management, SNMP System Overview PE24-240 is an advanced PoE switch providing a network point for data transmission and power supply. It has 24 PoE ports that can provide standard IEEE802.3af/at power supply through network cables. Because of the advanced self-sensing algorithm for supplying power over IEEE802.3af/at, the connected PoE or non-PoE standard equipment is safely protected.
0
People watching this product now!
Description
- ModelPE24-240
- Ethernet Port 17-1810 / 100 / 1000Mpps combo port @100 meters
- POE StandardIEEE 802.3af, IEEE802.3at
- Network ProtocolIEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE802.3ab - PoE Power ConsumptionPort1-24? 30W, Total? 400W
- Switching Bandwidth64Gbps (non-blocking)
- Forwarding Rate6.55Mpps
- Buffer Memory4MB
- MAC Size16KB
- MTBF100,000hours
- Power InputAC 240V, 50 / 60Hz
- PoE Power Supply1,2 (+) / 3,6(-) (Default); 45 (+),78 (-) (Option)
- SafetyCE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B - Working Temperature-20?C ~ 50?C (-4?F ~ 122?F)
- Working Humidity10% ~ 90%, non-condensing
- Dimensions (L*W*H)440 * 290 * 44.5 (mm)
- Network Protocol
- Spanning Tree Protocol (STP)Standard Spanning Tree 802.1d
Rapid Spanning Tree (RSTP) 802.1w
MSTP (Multi-Service Transfer Platform) - Port AggregationLink Aggregation Control Protocol (LACP) IEEE 802.3ad
- MirroringMany-to-one port mirroring
- DHCPSupport DHCP client / server
Support DHCP snooping - VLAN802.1Q tag-based VLAN
Port-based VLAN
4K VLANs simultaneously
(out of 4096 VLAN IDs) - MulticastIGMP v1 / v2 snooping
supports 1024 multicast groups
(source-specific multicasting is not supported) - SecuritySHH / SSL / HTTPS / DHCP Snooping / IP Source Guard /
Port Security / ARP Inspection / Storm Control / ACLs - Link Layer Discovery Protocol (LLDP)Support
- Green and Energy & Saving Ethernet (EEE)Support
- Quality of Service (QoS)Hardware Priority Queue / Scheduling / Classification / Rate Limiting
- System ManagementWeb / Port mirroring / Firmware upgrade
- Ethernet Port 1-2410 / 100Mpps POE port
All ports support MDI / MDIX self-adaptation
