ProCapture-T
Downloads
Capacity
Fingerprint: 6,000
Card: 10,000
Transaction: 100,000
User Photo: 3,000
Event Photo: 7,000
Communication
TCP/IP
RS485 (For Slave Reader)
USB Host
Wiegand Input / Output
Security Relay Box
Access Control Interface
Lock Relay Output
Alarm Output / Auxiliary Input
Exit Button / Door Sensor
Doorbell Output
Hardware
1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
Z-ID Fingerprint Sensor
2.4 Inches TFT-LCD Screen
125KHz EM Reader / IC Reader (Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Touch Keypad
120? Wide Angle Camera
Standard Functions
Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver
Special Functions
Multiple Verification Modes
Alive Finger Detection
Event Snapshot
User Photo (Optional)
ZK Encrypted Card (Optional)
Fingerprint Card
Compatibility
Wiegand Slave Reader
RS485 FP Slave Reader
ZKBioSecurity Software
Additional Info
Working Temperature: -10 ?C ~ 50 ?C
Dimensions: 195.5 ? 87 ? 35 mm.
Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR?0.0001% FRR?0.01%
Package Includes 12V 3A Power Supply
Power
Operating Voltage 12V DC
Current Draw < 500mA

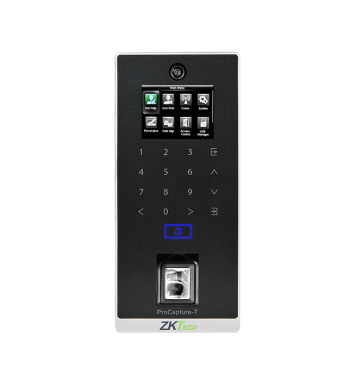

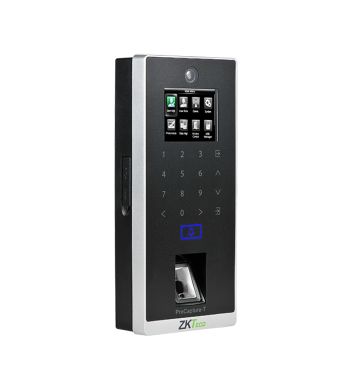

ProCapture-T is an access control terminal applying the most advanced Z-ID fingerprint sensor. Its outstanding performance provides a high identification rate towards dry, wet and rough fingers, being capable to detect alive finger for a higher security level. The fingerprint verification speed has been dramatically increased by its optimized fingerprint algorithm and the brand new ZMM220 hardware platform, equipped with a fast 1.2GHz processor.
The touch keypad delivers a smooth and easy user operation to enroll and delete users, set device and access control parameters, etc. Its built-in camera allows to capture user?s photos and events snapshots to provide attendance evidence (optional function).
Related products
F18 Access Control Terminal
- Display:?2.4-inch TFT LCD Color Screen
- Fingerprint Capacity (optional):?3,000
- Card Capacity:?5000(Optional) ID/IC/HID Prox/HID iclass card
- Transaction Capacity:?100,000
- Sensor:?ZK Optical Sensor
- Algorithm Version:?ZK Finger 10.0
- Communication:?RS232/485, TCP/IP, USB-host
- Access Control Interface:?3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
- Wiegand Signal:?Input, Output, SRB
- Functions:?DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional)
- Power Supply:?12V DC, 3A
- Operating Temperature:?0 ?C - 45 ?C
- Operating Humidity:?20% - 80%
- SDK and Software:?AC push, ZKBioAccess IVS / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5
- Dimension:?80 ? 183 ? 42mm (W*D*H)
F22
- Display:?2.4-inch TFT LCD Color Screen
- Fingerprint Capacity (optional):?3,000
- Card Capacity:?5000(Optional) ID or IC Card
- Transaction Capacity:?30,000
- Sensor:?Z-ID Sensor (optional)
- Algorithm Version:?ZKFinger V10.0
- Communication:?RS232/485, TCP/IP, USB-host, Wi-Fi
- Access Control Interface:?3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
- Wiegand Signal:?Input, Output
- Aux. Input:?1ea for linkage function
- Functions:?DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer (Optional), ADMS (Optional)
- Power Supply:?12V DC, 3A
- Operating Temperature:?0 ?C - 45 ?C
- Operating Humidity:?20% - 80%
- Dimension:?158.5 x 78.0 x 19.4mm (LxWxH)
- SDK and Software:?PUSH AC SDK, ZKBio Access software
F7
- Fingerprint Capacity: 2, 200
- Transaction Capacity: 50, 000
- Communication: RS232/485, TCP/IP
- Sensor: ZK Optical
- Dimension: 90 x 190 x 39 mm
- Power Supply: 12V DC 3A
- Access Control Interface: 3rd party electric lock, door sensor, exit button, Door alarm.
- Access Control Functions: Anti-pass back (with F12 slave)
KF1100 & KF1200 | Access Control Face Reader
- Biometric Method:?Visible light facial
- RFID:?ID card standard & IC card (Optional)
- User Capacity:?30,000
- Card Capacity:?30,000
- Face Capacity:?1,500
- Logs Capacity:?100,000
- Facial Recognition Algorithm:?ZKLiveface 3.5
- Facial Recognition Speed:?< 0.3s
- Facial Recognition Distance:?30cm ~ 50cm
- Facial Recognition Rate:?FAR ? 0.001%; FRR ? 1%
- MountingKF1100: Wall Mount ( Compatible with Asian gang - box ) KF1200: Wall Mount ( Compatible with Single gang - box )
- Operation System:?Linux
- Optional Functions:?Wi-Fi (Coming soon)
- Power Supply: ? 12V 500mA
- Storage Temperature:-20?C to 60?C ( -4?F to 140?F )
- Operating Humidity:?10% to 90%RH
- DimensionW*H*D KF1100: 91*91*13.8 mm KF1200: 121*80*13.8 mm
- Supported Softwares:ZKBio Access IVS
SenseFace 2A
SpeedFace-V3L (Lite)
SpeedFace-V5L
Features
- Visible Light Facial Recognition
- Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
- Multiple verification methods: Face / Fingerprint / Card / Password
- Available card modules: 125KHz ID card (EM) / 13.56MHz IC card (MF)
- Supplement lighting with adjustable brightness
- Capacity of 6,000 face templates
