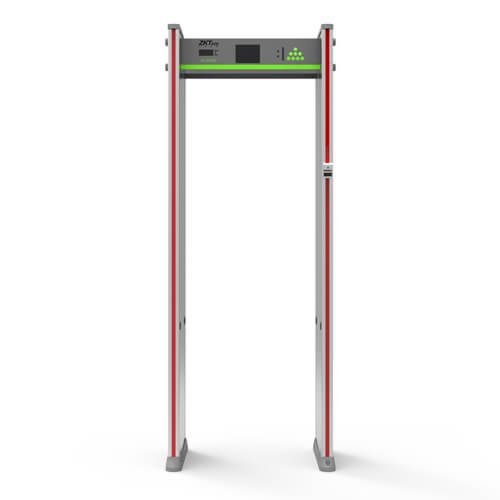

ZK-D3180S(TD)
ZK-D3180S with Temperature Measurement
- Temperature Detection
- 18 zones
0
People watching this product now!
Description
As the number of cases has been increasing and the geographical spread has been widening, the novel coronavirus outbreak has raised grave concerns about public health and personal hygiene.

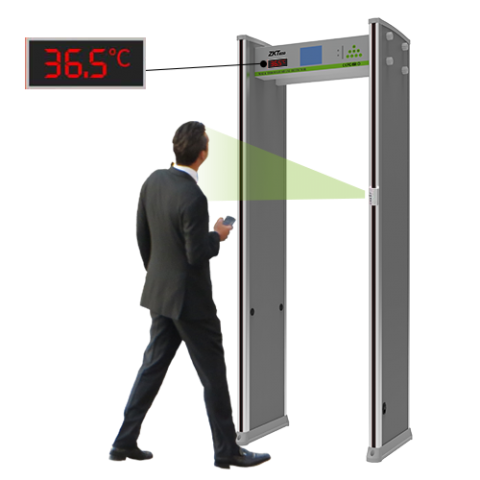

The disease can occasionally cause symptoms like high fever, and ZK-D3180S is a walk-through metal detector that can assist in body temperature measurement at the forehead and wrist of passengers. If the temperature detected is over 37.3?C or any other value set by the administrative user, ZK-D3180S will raise an alarm to inform the guards.
| Power Supply | AC100 V~240V |
| Working Temperature | 16?C ~ 38?C (60.8?F ~ 100.4?F) |
| Working Frequency | 4kHz ~ 8kHz |
| External Dimensions (H*W*D) | 2220 * 835 * 578 (mm) |
| Internal Dimensions (H*W*D) | 1990 * 700 * 578 (mm) |
| Package Dimensions (H*W*D) | 2310 * 350 * 665 (mm) |
| Gross Weight | 65kg |
| Temperature Sensor Type | IR temperature sensor |
| Temperature Measurement Time | ?1s |
| Temperature Measurement Point | Forehead or wrist |
| Best Temperature Measurement Distance | 50mm ~ 100mm |
| Height of Temperature Sensor from the Ground | 1500mm (customizable) |
| Temperature Measurement Deviation | ?0.5?C (?0.9?F) |
| Temperature Range | 30?C ~ 45?C (86?F ~ 113?F) |
| Interval Between Temperature Measurement | 2s |
