KF1100 &amp; KF1200 | Access Control Face Reader

Category: Master Readers Tag: Face Reader

Description
Reviews (0)

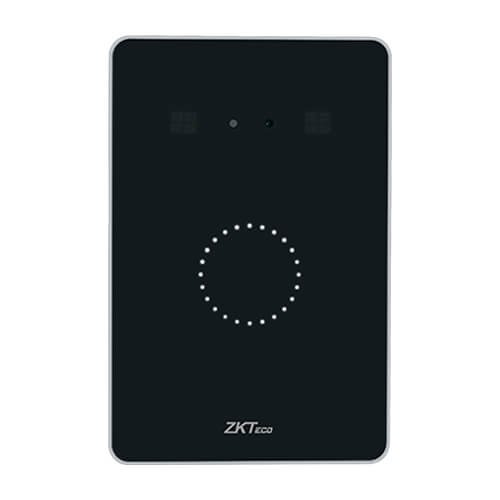

KF1100&KF1200 is the innovative visible light facial recognition reader dedicated to InBio series biometric controller to adopt facial recognition technology, offering one of the fastest, most stable, most accurate facial recognition experiences in the industry.

Related products

Add to wishlist

SenseFace 4 Series

Highlights:

• Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
• Attained IP65 Protection Rating With Dustproof and Waterproof
• Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
• Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
• HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
(VT07-B01and VT07-B01-W)
• User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
• Compatible with wireless doorbell (optional)

Downloads

• Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door
Sensor; Exit Button)

SenseFace 7 Series

Highlights:

Features

Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
Attained IP65 Protection Rating With Dustproof and Waterproof
Multiple Authentication Methods: Face / Fingerprint / RFID / Password
Available RFID Modules:125KHz ID Card / 13.56 MHz IC Card
HD Video Door Phone Via SIP Protocol (Version 2.0). It is Compatible With ZKTeco SIP Video Intercom Indoor Monitor (VT07-B01and VT07-B01-W)
User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
Compatible with wireless doorbell (optional)
Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door
Sensor; Exit Button)

Downloads

SenseFace 2A

Highlights:

• Visible Light Facial Authentication Technology and ZK Optical Fingerprint Verification
• Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
• Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
• HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
(VT07-B01and VT07-B01-W)
• User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive.
• Compatible with wireless doorbell (optional)
• Simple access control functions (Electric Lock; Door Sensor; Exit Button)

Downloads

F22

Highlights:

Display: 2.4-inch TFT LCD Color Screen
Fingerprint Capacity (optional): 3,000
Card Capacity: 5000(Optional) ID or IC Card
Transaction Capacity: 30,000
Sensor: Z-ID Sensor (optional)
Algorithm Version: ZKFinger V10.0
Communication: RS232/485, TCP/IP, USB-host, Wi-Fi
Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal: Input, Output
Aux. Input: 1ea for linkage function
Functions: DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer (Optional), ADMS (Optional)
Power Supply: 12V DC, 3A
Operating Temperature: 0 °C – 45 °C
Operating Humidity: 20% – 80%
Dimension: 158.5 x 78.0 x 19.4mm (LxWxH)
SDK and Software: PUSH AC SDK, ZKBio Access software

SenseFace 3 Series

Highlights:

Downloads

SpeedFace-V3L (Lite)

Highlights:

· IP65 waterproof and dustproof
· Multiple authentications: Facial recognition / RFID card / Password
· Available card modules:125KHz ID card / 13.56MHz IC card
· Hidden supplement light with adjustable brightness
· HD video door phone via ZSmart mobile App & ZKBio Talk (PC) (Coming soon)
· Embedded web server for system configuration
· With high capacity for necessary storage (log events: 200,000 / RFID
card: 3,000 / face capacity: 500)

ProCapture-X

Highlights:

Capacity
Fingerprint: 20,000
Cards: 50,000
Transaction: 500,000

Compatibility
Wiegand Slave Reader
RS485 FP Slave Reader
ZKBioSecurity Software

Hardware
1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
Z-ID Fingerprint Sensor
2.4 Inches TFT-LCD Screen
125KHz EM Reader / IC Card(Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Touch Keypad
POE(Standard IEEE 802.3at)
Wireless doorbell(Optional)

Access Control Interface:
Lock Relay Output
Alarm Output/Auxiliary Input
Exit Button / Door Sensor
Security Relay Box

Special Functions:
Multiple Verification Modes
Alive Finger Detection
ZK Encrypted Card(Optional)
Fingerprint Card(Optional)

Standard Functions:
Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver

Communication
TCP/IP
RS485 (For fingerprint&card Reader)
USB Host
Wiegand Input / Output
Wi-Fi(Optional)

Additional Info
Working Temperature: 0°C ~ 45 °C
Dimensions: 200.5 × 88.5 × 28.7 mm.
Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR≤0.0001% FRR≤0.01%
Package Includes 12V 3A Power Supply

Power
Operating Voltage 12V DC 3A
Current Draw < 500mA

Downloads

ProCapture-T

Highlights:

Downloads

Capacity
Fingerprint: 6,000
Card: 10,000
Transaction: 100,000
User Photo: 3,000
Event Photo: 7,000

Communication
TCP/IP
RS485 (For Slave Reader)
USB Host
Wiegand Input / Output
Security Relay Box

Access Control Interface
Lock Relay Output
Alarm Output / Auxiliary Input
Exit Button / Door Sensor
Doorbell Output

Hardware
1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
Z-ID Fingerprint Sensor
2.4 Inches TFT-LCD Screen
125KHz EM Reader / IC Reader (Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Touch Keypad
120° Wide Angle Camera

Standard Functions
Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver

Special Functions
Multiple Verification Modes
Alive Finger Detection
Event Snapshot
User Photo (Optional)
ZK Encrypted Card (Optional)
Fingerprint Card

Compatibility
Wiegand Slave Reader
RS485 FP Slave Reader
ZKBioSecurity Software

Additional Info
Working Temperature: -10 °C ~ 50 °C
Dimensions: 195.5 × 87 × 35 mm.
Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR≤0.0001% FRR≤0.01%
Package Includes 12V 3A Power Supply

Power
Operating Voltage 12V DC
Current Draw < 500mA

SpeedFace-V4L Pro

Highlights:

• Visible light facial recognition technology and in-glass fingerprint verification.
• Visible light facial recognition in dimly lit environment even without supplement light.
• Full spectrum of authentication methods: support facial recognition/ fingerprint verification/ scramble QR Code/ Card/ Password (Virtual Keypad).
• Supports multiple RFID modules: 125 kHz ID card / 13.56MHz IC card / ID & IC card.
• Enlarged Capacity: 3,000 (facial recognition) / 3,000 (fingerprint) / 3,000 (RFID card) / 200,000 transactions.
• HD video door phone via ZSmart mobile app / SIP protocol.
• Reached IP65 protection rating with waterproof and dustproof.
• Compatible with wired doorbell and wireless doorbell (optional).
* NOTE: Wi-Fi, bluetooth and wireless doorbell are all optional functions, coming soon!

F18 Access Control Terminal

Highlights:

Display: 2.4-inch TFT LCD Color Screen
Fingerprint Capacity (optional): 3,000
Card Capacity: 5000(Optional) ID/IC/HID Prox/HID iclass card
Transaction Capacity: 100,000
Sensor: ZK Optical Sensor
Algorithm Version: ZK Finger 10.0
Communication: RS232/485, TCP/IP, USB-host
Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand Signal: Input, Output, SRB
Functions: DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional)
Power Supply: 12V DC, 3A
Operating Temperature: 0 °C – 45 °C
Operating Humidity: 20% – 80%
SDK and Software: AC push, ZKBioAccess IVS / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5
Dimension: 80 × 183 × 42mm (W*D*H)

Downloads

F18 Brochure

F18

1 file(s) 0.00 KB

SpeedFace M4

F7

Highlights:

Fingerprint Capacity: 2, 200
Transaction Capacity: 50, 000
Communication: RS232/485, TCP/IP
Sensor: ZK Optical
Dimension: 90 x 190 x 39 mm
Power Supply: 12V DC 3A
Access Control Interface: 3rd party electric lock, door sensor, exit button, Door alarm.
Access Control Functions: Anti-pass back (with F12 slave)

Downloads
