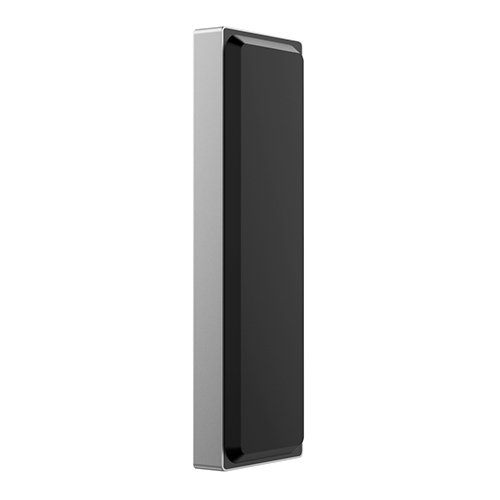

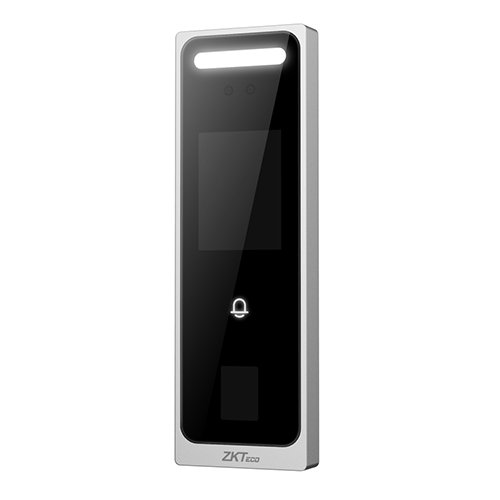

SpeedFace-V3LM1
? An IP65 protection rating with waterproof and dustproof, can fully operate under extreme weather
? Multiple authentication methods: facial recognition, fingerprint, scramble QR code and RFID cards verification
? Available card modules:125kHz ID card / 13.56MHz IC card
? Hidden supplement light design with adjustable brightness
? On board web server for system configuration
? High capacity for necessary record storage. Offers 200,000 transaction logs (Facial templates: 500 / Fingerprint
capacity: 3,000 / RFID card capacity: 3,000)
Downloads
SpeedFace-V3LM1 is an efficient Linux-based access control terminal, utilizing visible light technology for a comprehensive security management.
This terminal provides dual authentication methods, including facial recognition and fingerprint verification. ?Also, SpeedFace-V3LM1 is equipped with an ultimate anti-spoofing algorithm for facial recognition against all types of fake photos and videos attack.
Additionally, there are different versions of SpeedFace-V3LM1 to satisfy your needs. SpeedFace-V3LM1 [QR] comes with a QR code module, while the SpeedFace-V3LM1 [RFID] supports RFID cards verification function. The USB facial recognition extension reader KF1000-U is compatible with SpeedFace-V3LM1, offering a two-way verification and facial recognition access control management.
SpeedFace-V3LM1 series is also compatible with ZKBio CVAccess and ZKBio Zlink Mobile APP & ZKBio Zlink-Web when switching to BEST protocol.
Related products
F18 Access Control Terminal
- Display:?2.4-inch TFT LCD Color Screen
- Fingerprint Capacity (optional):?3,000
- Card Capacity:?5000(Optional) ID/IC/HID Prox/HID iclass card
- Transaction Capacity:?100,000
- Sensor:?ZK Optical Sensor
- Algorithm Version:?ZK Finger 10.0
- Communication:?RS232/485, TCP/IP, USB-host
- Access Control Interface:?3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
- Wiegand Signal:?Input, Output, SRB
- Functions:?DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional)
- Power Supply:?12V DC, 3A
- Operating Temperature:?0 ?C - 45 ?C
- Operating Humidity:?20% - 80%
- SDK and Software:?AC push, ZKBioAccess IVS / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5
- Dimension:?80 ? 183 ? 42mm (W*D*H)
F22
- Display:?2.4-inch TFT LCD Color Screen
- Fingerprint Capacity (optional):?3,000
- Card Capacity:?5000(Optional) ID or IC Card
- Transaction Capacity:?30,000
- Sensor:?Z-ID Sensor (optional)
- Algorithm Version:?ZKFinger V10.0
- Communication:?RS232/485, TCP/IP, USB-host, Wi-Fi
- Access Control Interface:?3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
- Wiegand Signal:?Input, Output
- Aux. Input:?1ea for linkage function
- Functions:?DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer (Optional), ADMS (Optional)
- Power Supply:?12V DC, 3A
- Operating Temperature:?0 ?C - 45 ?C
- Operating Humidity:?20% - 80%
- Dimension:?158.5 x 78.0 x 19.4mm (LxWxH)
- SDK and Software:?PUSH AC SDK, ZKBio Access software
F7
- Fingerprint Capacity: 2, 200
- Transaction Capacity: 50, 000
- Communication: RS232/485, TCP/IP
- Sensor: ZK Optical
- Dimension: 90 x 190 x 39 mm
- Power Supply: 12V DC 3A
- Access Control Interface: 3rd party electric lock, door sensor, exit button, Door alarm.
- Access Control Functions: Anti-pass back (with F12 slave)
ProCapture-X
SenseFace 2A
SpeedFace-V3L (Lite)
SpeedFace-V5L
Features
- Visible Light Facial Recognition
- Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
- Multiple verification methods: Face / Fingerprint / Card / Password
- Available card modules: 125KHz ID card (EM) / 13.56MHz IC card (MF)
- Supplement lighting with adjustable brightness
- Capacity of 6,000 face templates
