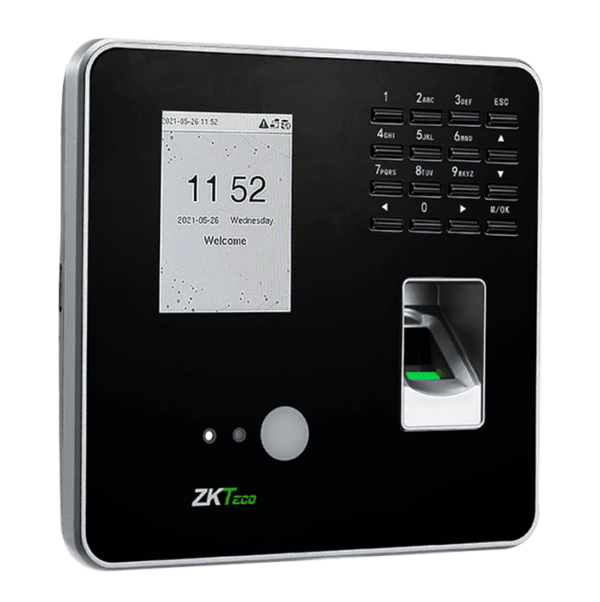

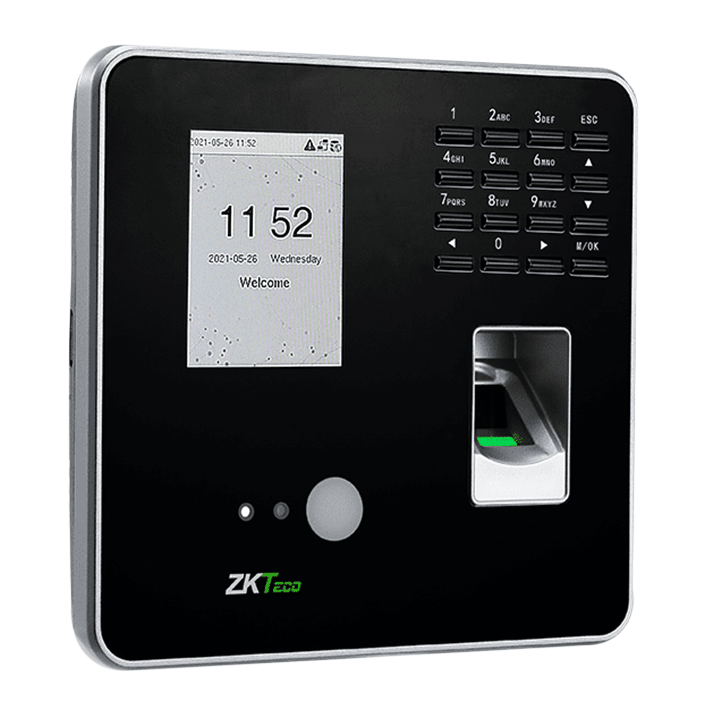

MB20-VL
?Visible Light Face Recognition
?Anti-Spoofing Algorithm Against Print Attack
?Multiple Verification Methods: Face/Fingerprint/Password
?Card Module (Optional)
?TCP/IP Network & USB Port
0
People watching this product now!
Description
MB20-VL is a contactless multi-biometric identification terminal that features ZKTeco’s innovative Visible Light facial recognition technology.
With the latest Visible Light facial recognition algorithm and technologies, the device can automatically recognize a target at a distance of 30cm to 50cm, offering better recognition quality in terms of speed and accuracy than previous infrared facial recognition terminals.
| Screen | 2.8-inch TFT display |
| Face Capability | 100 |
| Footprint Capability | 500 |
| Records | 50,000 |
| Communication | TCP/IP, USB Host |
| Standard Functions | ADMS, DST, Self-Service Query, Auto Status Change, T9 Input, Camera, 9 Digit User ID, Multiple Verification Methods, Ring Programming, SSR |
| Hardware | 1GHz dual-core CPU, 256MB RAM / 256MB flash, 1MP binocular camera |
| Operating system | Linux |
| Access Control Interface | Electric Lock, Door Sensor, Exit Button |
| Biometric algorithm | ZKLiveFace V3.5 / ZKFinger V10.0 |
| Facial Recognition Speed | ?1s |
| Power Supply | 5V 2A |
| Working Humidity | 20% to 80% |
| Working Temperature | 0?C to 45?C |
| Dimensions (W*H*D) | 161.93*152.93*31.50(mm) |
| Supported Software | BioTime 8.0 |
Reviews (0)
Related products
EFace10
Downloads
? Visible Light facial recognition
? Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
? Multiple verification methods: Face / Password / Card (optional)
? Card modules (optional): 125KHz ID Card (EM) / 13.56MHz IC Card
? Backup rechargeable battery (optional): offers at least 2 hours of power on a full charge, and it takes 4 hours
to recharge
? Support standard wall-mounting with Backplate or optional wall-mounting with Cable Box, and optional
desktop installation with Cable Box
Horus E1 | Time Attendance Device
- CPU:?Quad-core, 1.5GHz
- Android Version:?Android 8.1
- Memory:?RAM 2GB / ROM 16GB
- Camera:?2MP Dual Camera
- LCD: 720 * 1280, IPS touch LCD
- Face Capacity:?6,000 / 10,000 (Optional)
- Wi-Fi:?2.4GHz, 5GHz, 802.11a / b / g / n
- Bluetooth:?4.0
- 4G Wireless Broadband
- GPS:?GPS / A-GPS
- Power:?12V 2A
- Operating Temperature:?-10?C - 50?C
- Operating Humidity:?20% - 80%RH
- Certifications:?CE, FCC, RoHS
K40 Pro | Time Attendance Device
| Fingerprint Capacity | 1000 (2000 without SSR) |
| ID Card Capacity | 1000 (Optional) |
| Record Capacity | 80,000 |
| Display | 2.8-inch TFT Screen |
| Communication | TCP/IP, USB Host |
| Standard Functions | WDMS,Web Server, SMS, Automatic Status Switch,Self-Service Query, Work Code, T9 input, 9 Digits User ID, DST, Schedule Bell |
| Optional Functions | ID/Mifare |
| Software | ZKTime.net 3.0 |
| Power Supply | DC 12V 1.5A |
| Verification Speed | 0.5 sec |
| Operating Temp. | 0 ?C- 45 ?C |
| Operating Humidity | 20%-80% |
| Dimensions | 184 x 136 x 37.6 (Length x Width x Thickness) |
MB560-VL
? Visible Light Facial Recognition
? Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
? Multiple verification methods: Face / Fingerprint / Card / Password
? Optional card modules: 125KHz ID Card (EM) / 13.56MHz IC Card
? Supplement lighting with adjustable brightness
