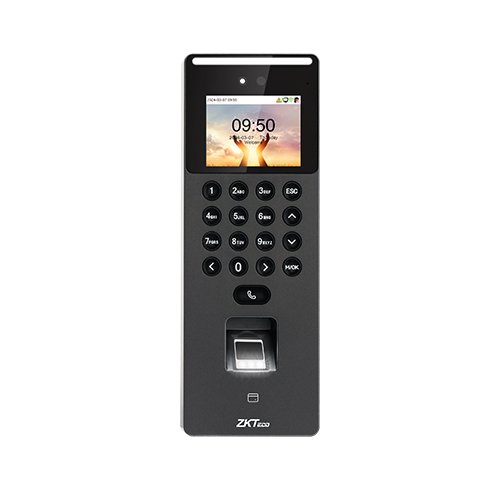

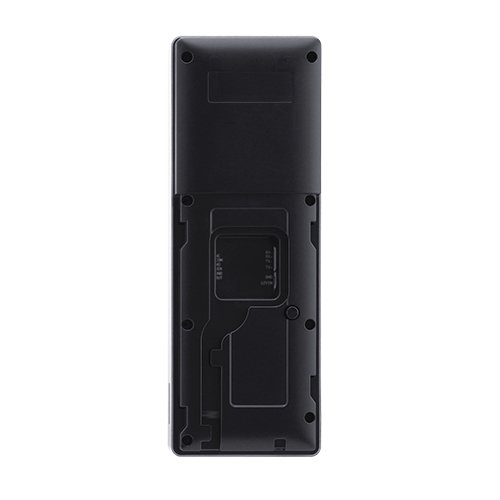

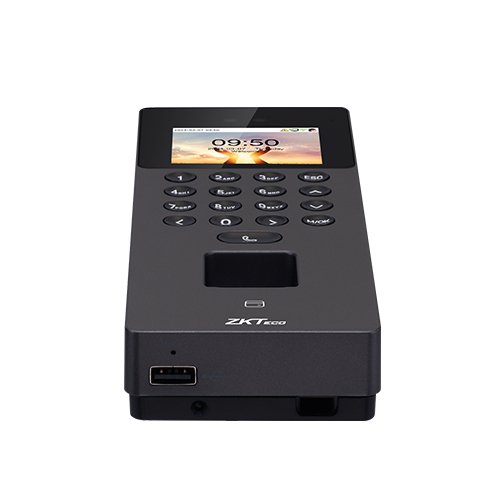

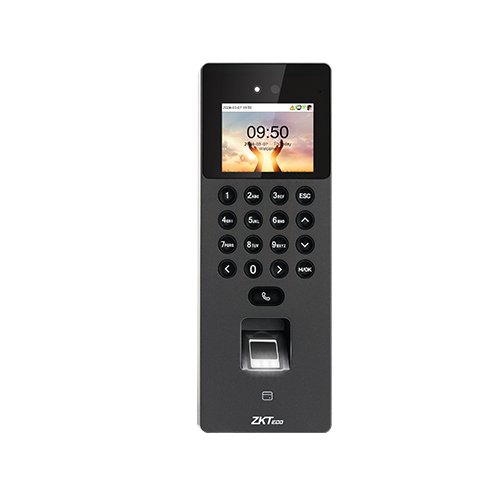

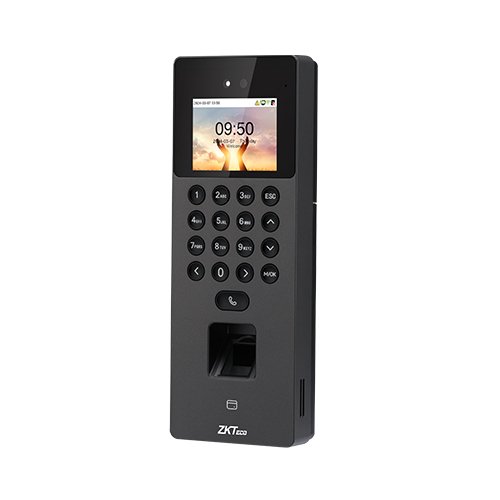

SenseFace 2A
? Visible Light Facial Authentication Technology and ZK Optical Fingerprint Verification
? Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
? Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
? HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
(VT07-B01and VT07-B01-W)
? User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive.
? Compatible with wireless doorbell (optional)
? Simple access control functions (Electric Lock; Door Sensor; Exit Button)
Downloads
0
People watching this product now!
Description
SIP-Ready Multi-Biometric Access Control Terminal with Video Intercom Capability.
SenseFace 2A adopts the latest intelligent engineering facial authentication. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and videos attack, which offering secure biometric authentication.
SenseFace 2A is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (version 2.0).
Besides, SenseFace 2A supports multiple communication protocols. Its firmware has AC push and can convert to TA push to, it is compatible with various AC or TA softwares. Also, it can change to BEST protocol to link with ZKBio Zlink (AC module).
Reviews (0)
Related products
F18 Access Control Terminal
- Display:?2.4-inch TFT LCD Color Screen
- Fingerprint Capacity (optional):?3,000
- Card Capacity:?5000(Optional) ID/IC/HID Prox/HID iclass card
- Transaction Capacity:?100,000
- Sensor:?ZK Optical Sensor
- Algorithm Version:?ZK Finger 10.0
- Communication:?RS232/485, TCP/IP, USB-host
- Access Control Interface:?3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
- Wiegand Signal:?Input, Output, SRB
- Functions:?DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional)
- Power Supply:?12V DC, 3A
- Operating Temperature:?0 ?C - 45 ?C
- Operating Humidity:?20% - 80%
- SDK and Software:?AC push, ZKBioAccess IVS / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5
- Dimension:?80 ? 183 ? 42mm (W*D*H)
F7
- Fingerprint Capacity: 2, 200
- Transaction Capacity: 50, 000
- Communication: RS232/485, TCP/IP
- Sensor: ZK Optical
- Dimension: 90 x 190 x 39 mm
- Power Supply: 12V DC 3A
- Access Control Interface: 3rd party electric lock, door sensor, exit button, Door alarm.
- Access Control Functions: Anti-pass back (with F12 slave)
ProCapture-T
Downloads
Capacity
Fingerprint: 6,000
Card: 10,000
Transaction: 100,000
User Photo: 3,000
Event Photo: 7,000
Communication
TCP/IP
RS485 (For Slave Reader)
USB Host
Wiegand Input / Output
Security Relay Box
Access Control Interface
Lock Relay Output
Alarm Output / Auxiliary Input
Exit Button / Door Sensor
Doorbell Output
Hardware
1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
Z-ID Fingerprint Sensor
2.4 Inches TFT-LCD Screen
125KHz EM Reader / IC Reader (Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Touch Keypad
120? Wide Angle Camera
Standard Functions
Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver
Special Functions
Multiple Verification Modes
Alive Finger Detection
Event Snapshot
User Photo (Optional)
ZK Encrypted Card (Optional)
Fingerprint Card
Compatibility
Wiegand Slave Reader
RS485 FP Slave Reader
ZKBioSecurity Software
Additional Info
Working Temperature: -10 ?C ~ 50 ?C
Dimensions: 195.5 ? 87 ? 35 mm.
Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR?0.0001% FRR?0.01%
Package Includes 12V 3A Power Supply
Power
Operating Voltage 12V DC
Current Draw < 500mA
ProCapture-X
Capacity
Fingerprint: 20,000
Cards: 50,000
Transaction: 500,000
Compatibility
Wiegand Slave Reader
RS485 FP Slave Reader
ZKBioSecurity Software
Hardware
1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
Z-ID Fingerprint Sensor
2.4 Inches TFT-LCD Screen
125KHz EM Reader / IC Card(Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Touch Keypad
POE(Standard IEEE 802.3at)
Wireless doorbell(Optional)
Access Control Interface:
Lock Relay Output
Alarm Output/Auxiliary Input
Exit Button / Door Sensor
Security Relay Box
Special Functions:
Multiple Verification Modes
Alive Finger Detection
ZK Encrypted Card(Optional)
Fingerprint Card(Optional)
Standard Functions:
Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver
Communication
TCP/IP
RS485 (For fingerprint&card Reader)
USB Host
Wiegand Input / Output
Wi-Fi(Optional)
Additional Info
Working Temperature: 0?C ~ 45 ?C
Dimensions: 200.5 ? 88.5 ? 28.7 mm.
Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR?0.0001% FRR?0.01%
Package Includes 12V 3A Power Supply
Power
Operating Voltage 12V DC 3A
Current Draw < 500mA
Downloads
SenseFace 4 Series
? Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
? Attained IP65 Protection Rating With Dustproof and Waterproof
? Multiple Authentication Methods: Facial / Fingerprint / RFID / Password
? Available RFID Modules:125 kHz ID Card / 13.56 MHz IC Card
? HD Video Door Phone Via SIP Protocol (Version 2.0). Compatible With ZKTeco SIP Video Intercom Indoor Monitor
(VT07-B01and VT07-B01-W)
? User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
? Compatible with wireless doorbell (optional)
Downloads
? Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door
Sensor; Exit Button)
SpeedFace-V3L (Lite)
? IP65 waterproof and dustproof
? Multiple authentications: Facial recognition / RFID card / Password
? Available card modules:125KHz ID card / 13.56MHz IC card
? Hidden supplement light with adjustable brightness
? HD video door phone via ZSmart mobile App & ZKBio Talk (PC) (Coming soon)
? Embedded web server for system configuration
? With high capacity for necessary storage (log events: 200,000 / RFID
card: 3,000 / face capacity: 500)
SpeedFace-V3LM1
? An IP65 protection rating with waterproof and dustproof, can fully operate under extreme weather
? Multiple authentication methods: facial recognition, fingerprint, scramble QR code and RFID cards verification
? Available card modules:125kHz ID card / 13.56MHz IC card
? Hidden supplement light design with adjustable brightness
? On board web server for system configuration
? High capacity for necessary record storage. Offers 200,000 transaction logs (Facial templates: 500 / Fingerprint
capacity: 3,000 / RFID card capacity: 3,000)
Downloads
SpeedFace-V4L Pro
? Visible light facial recognition technology and in-glass fingerprint verification.
? Visible light facial recognition in dimly lit environment even without supplement light.
? Full spectrum of authentication methods: support facial recognition/ fingerprint verification/ scramble QR Code/ Card/ Password (Virtual Keypad).
? Supports multiple RFID modules: 125 kHz ID card / 13.56MHz IC card / ID & IC card.
? Enlarged Capacity: 3,000 (facial recognition) / 3,000 (fingerprint) / 3,000 (RFID card) / 200,000 transactions.
? HD video door phone via ZSmart mobile app / SIP protocol.
? Reached IP65 protection rating with waterproof and dustproof.
? Compatible with wired doorbell and wireless doorbell (optional).
* NOTE: Wi-Fi, bluetooth and wireless doorbell are all optional functions, coming soon!
