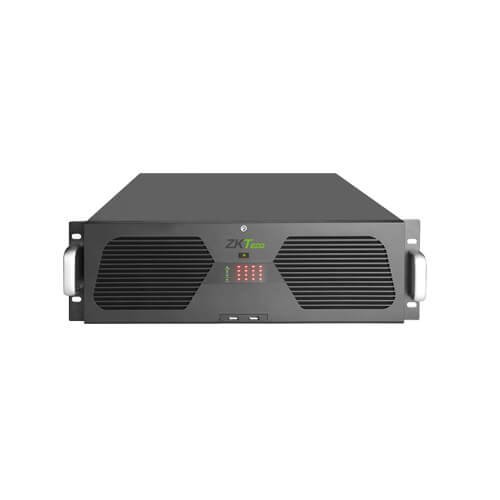

Z85128NTR | 128CH, 8MP, Non-PoE NVR

Description

• Model: Z85128NTR

SYSTEM

• Main Processor: Multi-core embedded processor
• Operating System: Embedded LINUX

VIDEO AND AUDIO

• Max. IPC Input: 128CH
• Two-way Talk: Support
• Audio Compression: G.711u

LIVE VIEW

• Display Split: 1 / 4 / 6 / 8 / 9 / 16 / 36 / 64 / 128 CH
• Resolution: 8MP (3840 * 2160) / 5MP (2592 * 1944) / 2MP (1920 * 1080) / 1.3MP (1280 * 1024) / 1MP (1280 * 720) / D1 (1024 * 768)
• Live View Capability: 36CH@D1 (25 / 30fps)

RECORDING

• Video Compression: H.265+ / H.265 / H.264
• Recording Resolution: 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1
• Max. Decoding Capability: 36CH@D1 (25 / 30fps)
• Incoming Bandwidth: 640 Mbps
• Bit Rate: Main Stream: 256Kbps ~ 8192Kbps
  Sub Stream: 50Kbps ~ 700Kbps
• Record Mode: Schedule, Manual, Motion Detection, IVA Events Alarm
• Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

PLAYBACK AND BACKUP

• Playback Channel: 16CH
• Search Mode: Time/ Date, Alarm Types, IVA Search, Face Retrieval
• Playback Function: Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward,
  Fast Play, Slow Play, Single Frame Play, Hide / Show Time Bar, Backup, Snapshot, Full Screen
• Backup Mode: USB Device / Network Remote

IVA ALARM

• Local IVA Functions: Line Crossing / Target Counting / Object Left / Lost / Intrusion / Scene Change / VQD
• Regular Detection: Motion Detection / Video Shelter / Video Loss
• AI Search: Support search target video by multiple intelligent conditions

NETWORK

• Network Protocol: TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P
• Max. Online Users: 5
• Web Browser: Internet Explorer
• Operation System: Windows
• Management Platform: AntarVis 2.0
• Mobile Application: AntarView Pro (iOS & Android)
• P2P Cloud Service: Support
• Interoperability: ONVIF Profile S, SDK, CGI, API

STORAGE & AUXILIARY INTERFACE

• SATA Ports: 16 SATA Ports, up to 8 TB capacity
• eSATA: N/A
• Raid 0 /1 / 5 / 6 / 10: Support
• HDMI: 2 * HDMI (4K)
• VGA: 2 * VGA (1080P)
• Network Interface: 1 RJ – 45 Port (1,000Mbps)
• PoE Ports: N/A
• USB: 2 * USB 2.0, 1 * USB 3.0
• Audio Input / Output: 1/1
• Alarm Input / Output: 4/4
• RS-485: Support

POWER

• Power Supply: AC100 ~ 240V, 47Hz ~ 63Hz
• Power Consumption: 50W (Without HDD)

GENERAL

• Casing: 3U
• Working Temperature: -10°C ~ 55°C / 14°F ~ 131°F
• Working Humidity: 10% ~ 90%
• Dimensions (L*W*H): 430 * 483 * 143 (mm)
• Net Weight: 18.5kg (without HDD)
• Gross Weight: 19kg (without HDD)

ORDER INFORMATION

• Name: NVR
• Model: Z85128NTR
• Description: 128CH H.265+ NVR, 16SATA
